| QGXI 系列微型气缸 | | |
|
|
| ▲表一： 单位：mm |
|
配用微型气缸型号QGX
|
W
|
δ
|
TF
|
UR
|
FB
|
UF
|
|
QGX I 12*S
|
18
|
4
|
40
|
30
|
5.5
|
55
|
|
QGX I 16*S
|
|
QGX I 20*S
|
19
|
5
|
50
|
40
|
6.6
|
70
|
|
QGX I 25*S
|
20
|
8
|
50
|
40
|
6.6
|
70
|
|
QGX I 32*S
|
20
|
8
|
65
|
50
|
8.6
|
82
|
|
|
|

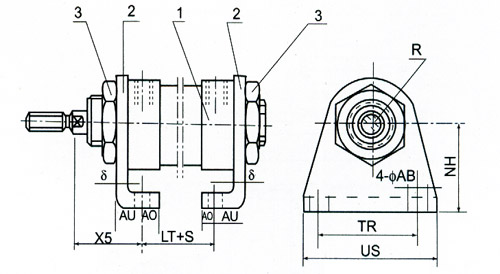

| ▲MS1 脚架安装： 单位：mm |
|
配用微型气缸型号
|
XS
|
LT
|
AU
|
AO
|
NH
|
TR
|
US
|
AB
|
R
|
δ
|
|
QGX I 12*S
|
32
|
24
|
14
|
7
|
20
|
32
|
47
|
5.5
|
13
|
4
|
|
QGX I 16*S
|
32
|
31
|
14
|
7
|
20
|
32
|
47
|
5.5
|
13
|
4
|
|
QGX I 20*S
|
36
|
35
|
17
|
8
|
25
|
40
|
55
|
6.6
|
17
|
5
|
|
QGX I 25*S
|
40
|
40
|
17
|
8
|
25
|
40
|
55
|
6.6
|
17
|
5
|
|
QGX I 32*S
|
44
|
30
|
22
|
10
|
32
|
42
|
60
|
8.6
|
24
|
6
|
|
|
